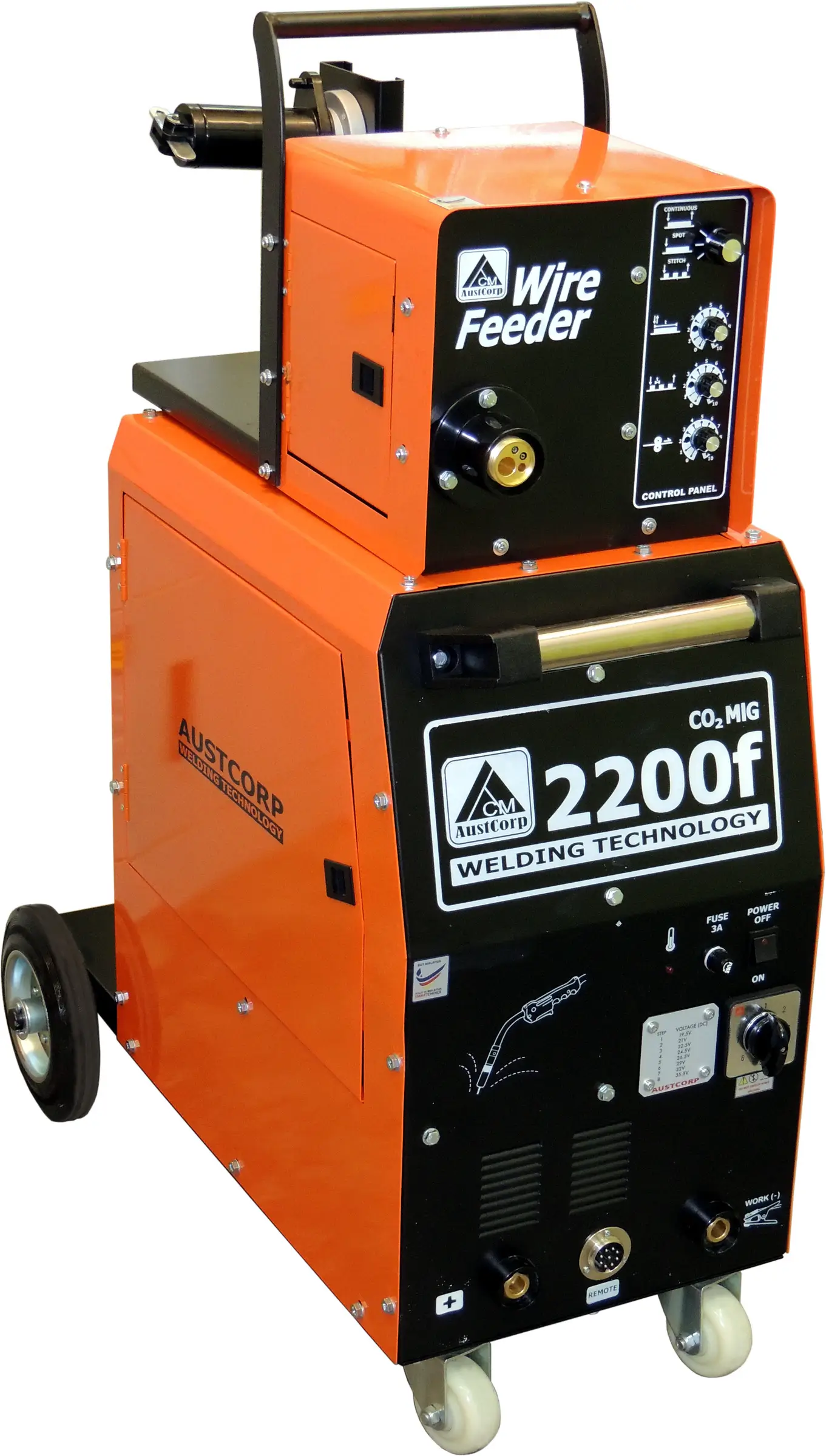

The MIG 2200F is a new design release, 230 volts, and low consumption of 6.5kVA (max). The design of a compact unit or external wire feeder extension is suited for light fabrication, automotive service, maintenance workshops, and others.
| MODEL MIG2200F | |||
| Main Voltage | 1~230V ±10% | Feeding mechanism | MWF |
| Connection capacity | 6.5kVA | 2-roll drive | |
| Open circuit voltage | 19V-40V | Wire reel Ø/kg up to | 300mm/18kg |
| Voltage settings | 8 | Wire dia. | 0.6-1.2mm |
| Current range, min. | 45A/16V | Wire speed | 2-15m/min |
| Current range, max. | 220A/25V | Spot time | 0.15-2.5s |
| Duty cycle 40% | 220A/25V | Stitch time | 0.15-2.5s |
| Duty cycle 60% | 180A/23V | Dimensions LxWxH | 800x340x690mm |
| Duty cycle 100% | 140A/21V | Dimensions LxWxH, F | 800x340x1065mm |
| Total Weight | 64.5 kg | ||
| Total Weight, F | 77.5 kg |
| Size | DTW300RTJ, DTW300Z |
|---|
